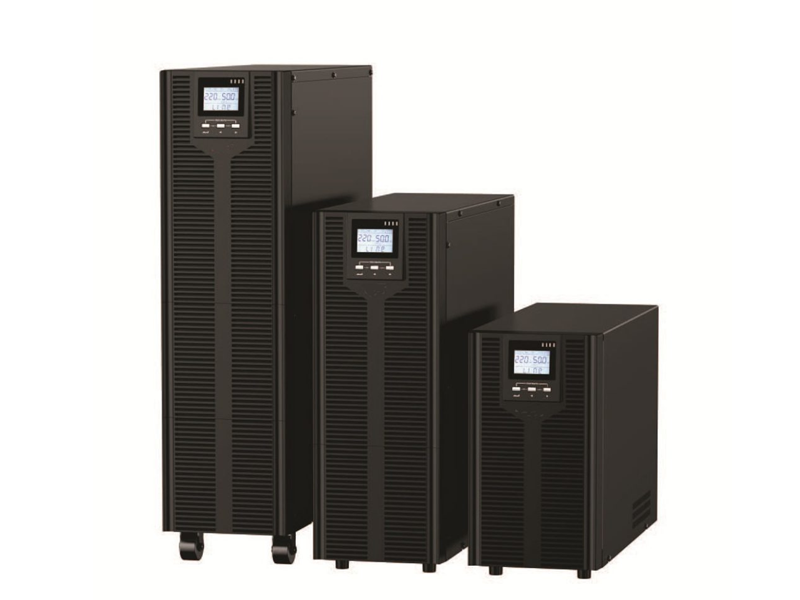

• High frequency on-line double conversion technology
• DSP (Digital signal processors)control technology
• Active power factor correction (APFC), input power factor up to 0.99
• Output power factor 0.9
• Wide input voltage range (110 V ~ 300 Vac) and frequency range (40 ~ 70 Hz)
• Auto sensing frequency
• 50 / 60 Hz frequency conversion
• Cold start
• Rear ventilation design and variable speed fan
• Effective software and hardware protection
• Quick and stable charging, 90% capacity restored in 3 h (standard model UPS)
• Linearderating in low voltage input reducing battery discharging times
• Settable delayed start when power is restored
• Advanced battery management (ABM)
• Multiple functions settable via LCD: output voltage, EOD, auto-start, bypass mode, ECO mode and frequency conversion mode
• Multi-platform communications: RS232 (standard), USB / RS485 / SNMP / dry contacts (optional)

• High frequency on-line double conversion technology
• DSP (Digital signal processors) technology
• Active power factor correction (APFC), input power factor up to 0.99
• Output power factor 0.9
• Wide input voltage range (110 V ~ 300 Vac) and frequency range (40 ~ 70Hz)
• Auto sensing frequency
• 50 / 60 Hz frequency conversion
• Cold start
• Rear ventilation design and variable speed fan
• Effective software and hardware protection
• Flexible battery configuration (Settable 14 – 20 pcs batteries)
• Quick and stable charging, 90% capacity restored in 4 h (standard model UPS)
• Linear derating in low voltage input reducing battery discharging times
• Settable delayed start when power is restored
• Advanced battery management (ABM)

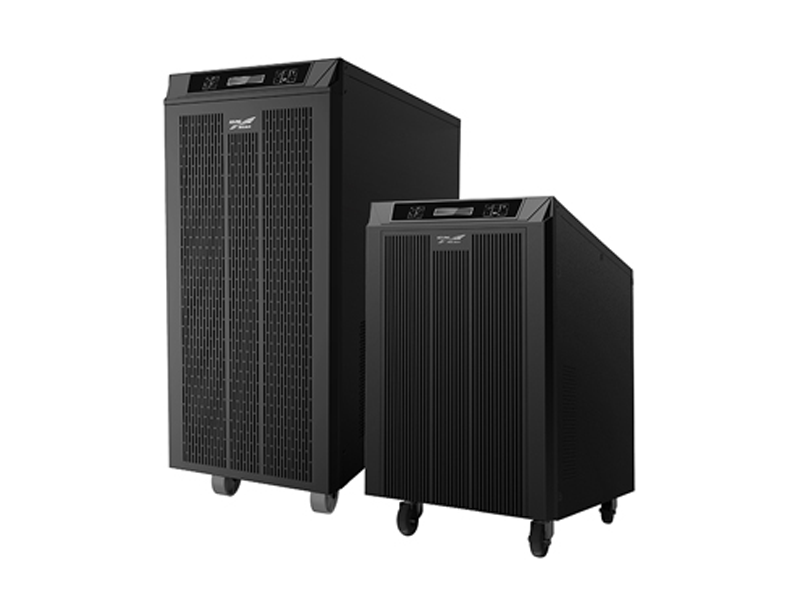

High Reliability
● Advanced DSP (Digital signal processors) technology
● Variable speed fan
● Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check
● Advanced digital parallel technology

High Availability
● Wide input voltage range, 50 / 60 Hz frequency auto sensing
● Linear derating in low voltage input reducing battery discharging times, extending the service life of battery
● Dual-input design, supporting independent bypass
● Output power factor improved from 0.9 to 1, load capacity increased by 13%
● Flexible battery configuration (settable 16 – 20 pcs batteries)
● Charging voltage and current configured by demands
● Ability to switch on the UPS with batteries
● Settable delayed start time when mains power is restored, reducing the impact on power grid or generator
● Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output

High Usability
● LCD+LED display, multi-functional keys operation, friendly human-machine interface
● Powerful background software for parameters configuration and online updating
● Compact internal layout, miniaturized the complete unit for small footprint

Key Features

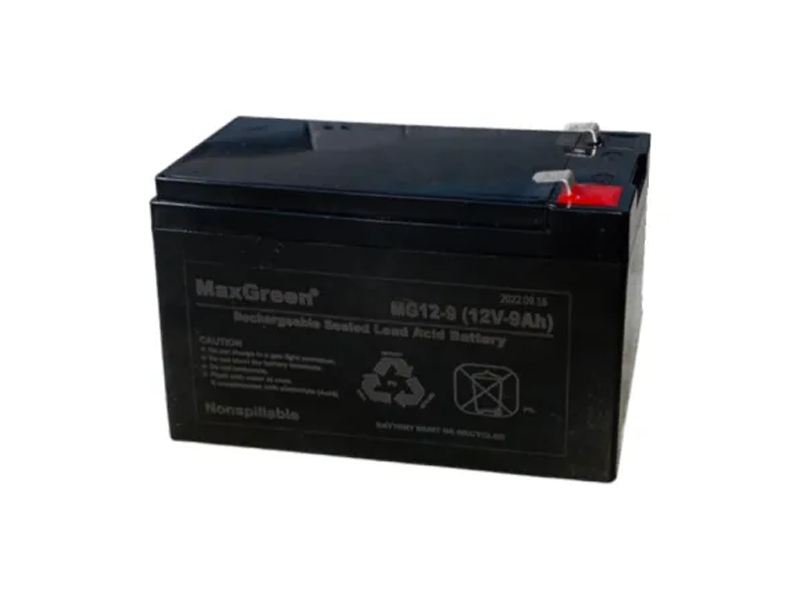

• Model: MG12-9
• Nominal Voltage: 12 V
• Capacity: 9 Ah
• Absorbent glass mat technology
• ABS container

Key Features

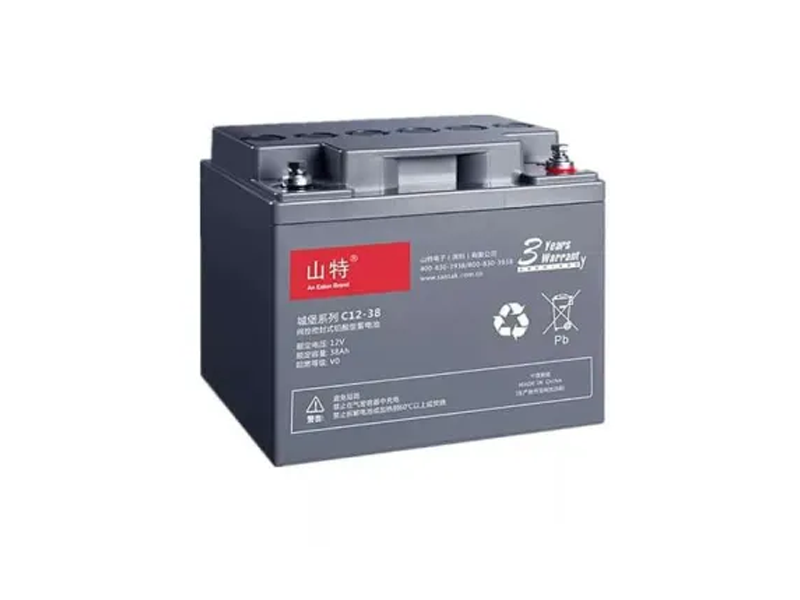

• Model: 12V-38AH
• Capacity: 38Ah
• Input voltage: 12V
• Max. Charging Current: 0.3CA
• Design life 10 years
